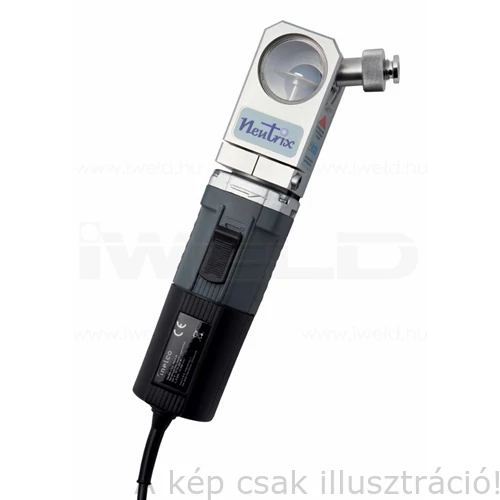

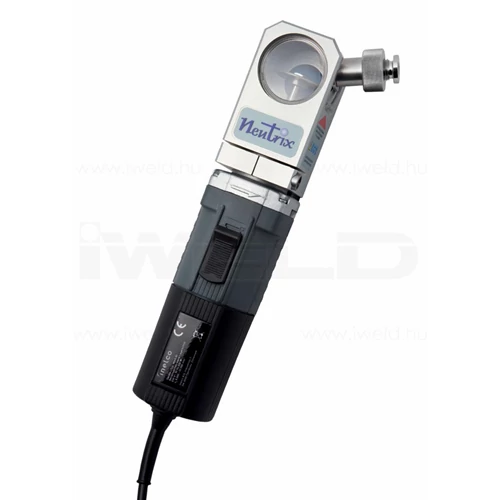

Volfrám köszörűgép NEUTRIX-TEG4 (0,8-4,0 mm átmérőre,15°-180°,8.000-22.000/perc fordula) 810.8600.0, opcionális tartozékok is

elektródaátmérő: 1,0-4,0mm
min. 15mm elektródahossz
fordszám 7000-32000 ford/perc
átm 40mm-es tárcsa
motorteljesítmény: 850Watt
Szerszámokkal kofferben

Electrode grinding device ESG 1-bestwelding results
due to optimum grinded electrodes.

- For grinding ofelectrodesfrom 1.0-4.0 mm

- Minimum grinding ofthe materialatthe electrode
ofonly 0.3 mm concerning integrated setting gauge

- Therefore, the electrode maybe regrinded up to
200 timesinstead ofonly50-100 times

- No annealing when grinding

- Integrated suction with P3 dustfilter, therefore the
user isperfectlysafe-guarded

- Optimized for use in the workshop
and for assembly

- Precision controlofthe electrode inside a tool
holder

- Also for startgrinding ofshortelectrodes(up to 15
mm) e.g. for orbitalwelding devices

- Bysimple setting you mayuse 3 grinding levelsof
the diamond disk, thusthe service life ofthe
diamond diskisthree timeslonger

- Continuouslyvariable grinding angle of 15-180


- You may also directly grind electrodes with metal
drops, which savestime and preventsthe
electrode from breaking

- High-performance engine of650 watts

Scope of delivery ESG 1

-
Driving motor

-
Grinding spindle with filter case
and filter

-
Electrode holders

-
Diamond disk Ø 40 mm

-
Collet chucks for electrodes
1.6/2.4/3.2 mm

-
Operating tools, 2 x Allen key
8/4 mm, 2 x wrench 13-17/13-14

-
Sanitation bag for disposable filter

-
In plastic case

Technical data
Electrode Ø 1.0-4.0 mm
Grinding angle continuously variable 15
-180
Electrode length min. 15 mm
Capacity 650 watts
Current supply 230 Volts
Revolutions infinitely variable 8.000-32.000 1/min
Diamond disk Ø 40 mm
Weight 2.5 kg
