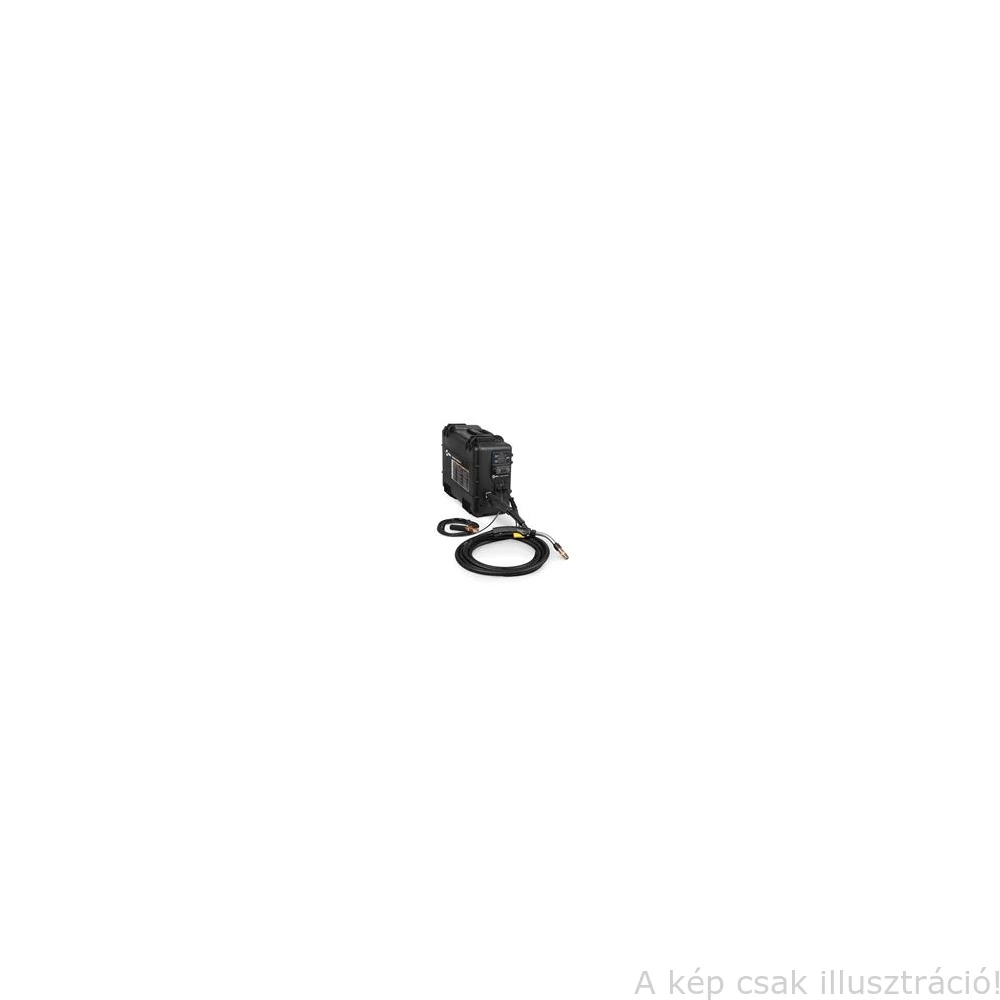

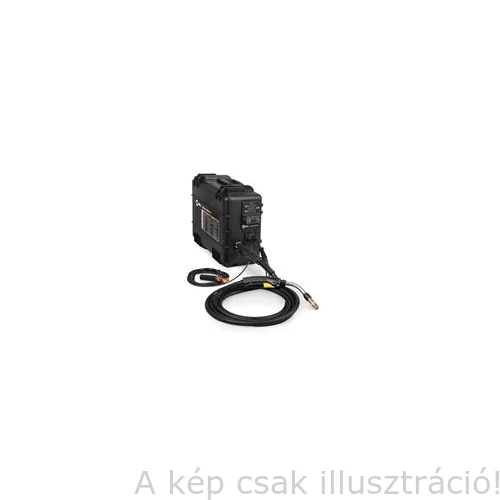

Miller huzalelőtoló FieldPro/Suitcse12" kofferes, ütésálló 1 pár görgős,átm.:300mm csévékhaz is, PipeWorx 350-hoz 301228
Leírás
Bemeneti teljesítmény/Input Power: 14 – 48 VDC, 110V Max. OCV
Névleges kimeneti teljesítmény/Rated Output: 425 A, 60% Duty Cycle
Cséve kapacitás/Max Spool Size Capacity: 305 mm, 15 kg
Huzal előtolási sebesség/Wire Feed Speed: 1.3 – 19.8 m/min
Méretek/Dimensions: 394 x 229 x 533 mm
Súly/Weight: 15.9 kg
Erős, ütésálló kofferben egy stabil, mostoha körülmények között is biztosan működő egy pár görgős előtoló egység van.
Set volts and wire feed speed remotely. The simple interface
on the feeder allows operators to adjust parameters at the point
of use with no control cables.
Easy process changeover. Simply connect the SuitCase
feeder to your weld lead and you are ready to go. The power
source automatically switches settings to run conventional
wire processes.
Easy solution for traditional wire process. Add the flux-cored
capability of the PipeWorx 350 FieldPro™ for fill and cap passes
for increased productivity.
Durable design reduces downtime. Impact-resistant case and
the elimination of feeder control cables provides a solid solution
to last in harsh environments.
ie.:

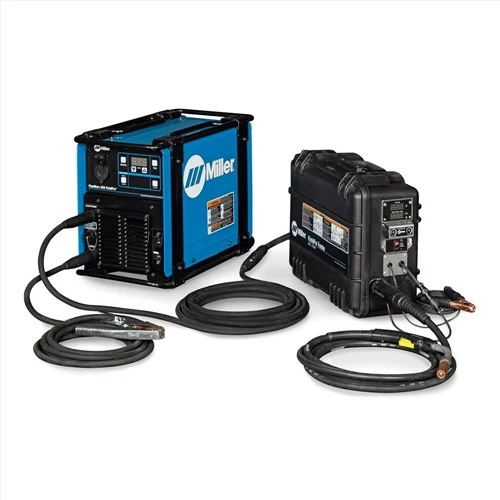

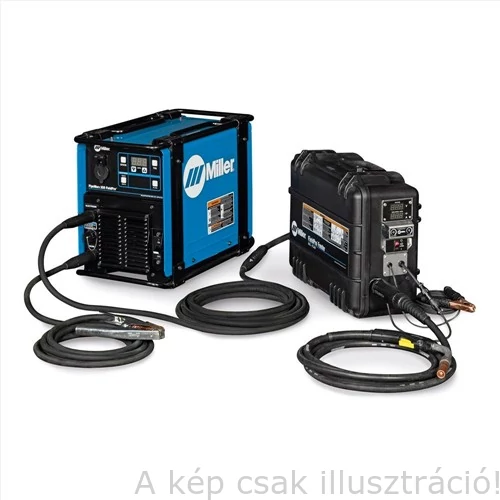

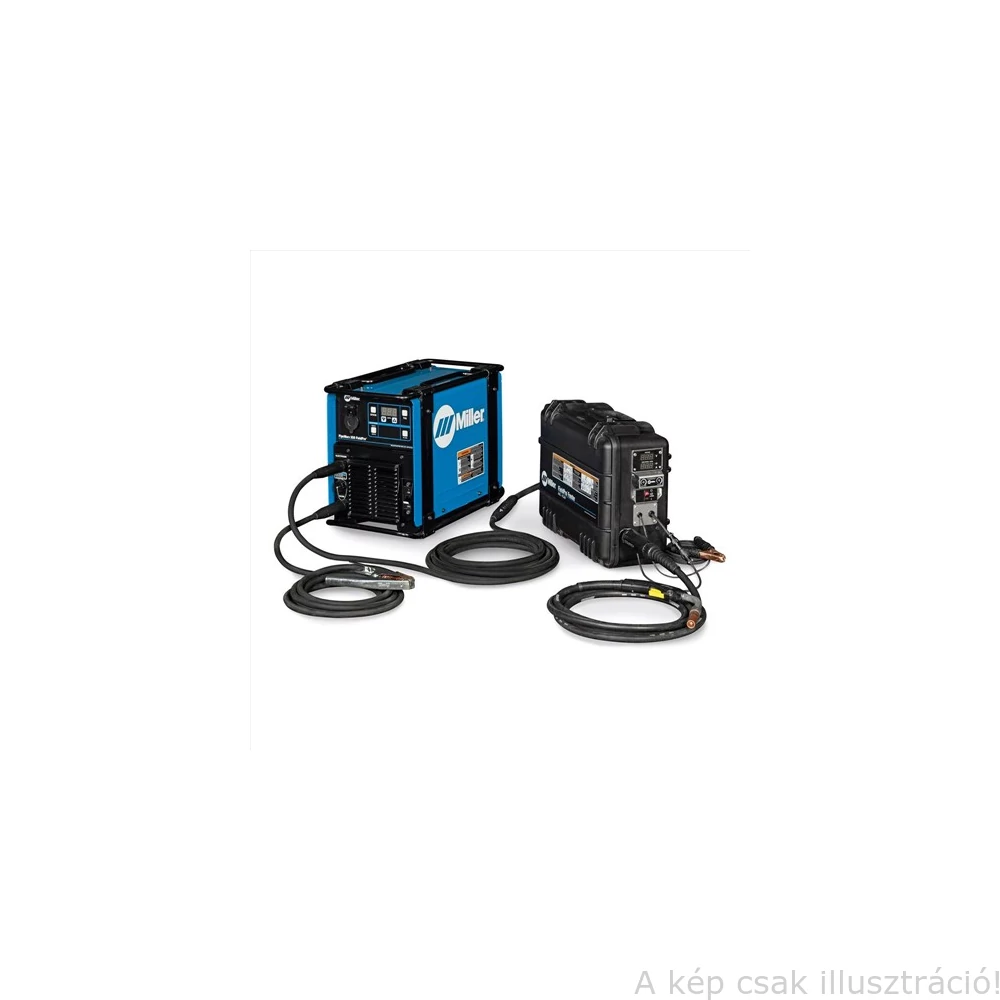

ArcReach® SuitCase® 12, Bernard™ BTB 300 A Gun Pkg
951729
Every year, outdated welding equipment can cost you thousands of dollars and hundreds of hours of productive time. Step up to Miller XMT 350 FieldPro systems with ArcReach technology — and improve your bottom line!
Ismertető
Bemeneti teljesítmény/Input Power: 14 – 48 VDC, 110V Max. OCV
Névleges kimeneti teljesítmény/Rated Output: 425 A, 60% Duty Cycle
Cséve kapacitás/Max Spool Size Capacity: 305 mm, 15 kg
Huzal előtolási sebesség/Wire Feed Speed: 1.3 – 19.8 m/min
Méretek/Dimensions: 394 x 229 x 533 mm
Súly/Weight: 15.9 kg
Erős, ütésálló kofferben egy stabil, mostoha körülmények között is biztosan működő egy pár görgős előtoló egység van.
Set volts and wire feed speed remotely. The simple interface
on the feeder allows operators to adjust parameters at the point
of use with no control cables.
Easy process changeover. Simply connect the SuitCase
feeder to your weld lead and you are ready to go. The power
source automatically switches settings to run conventional
wire processes.
Easy solution for traditional wire process. Add the flux-cored
capability of the PipeWorx 350 FieldPro™ for fill and cap passes
for increased productivity.
Durable design reduces downtime. Impact-resistant case and
the elimination of feeder control cables provides a solid solution
to last in harsh environments.
