Bemeneti teljesítmény/Input Power: 208-575 V, 1-Phase or 3-Phase
Névleges kimeneti teljesítmény/Rated Output: 200 A at 28 V, 60% Duty Cycle
Kimeneti tartomány/Output Range: 1-280 A (DC), 2-280 A (AC)
Maximális üresjárati feszültség/Max Open Circuit Voltage: 60 VDC, (11VDC low OCV)
Méretek/Dimensions: 346 x 219 x 569 mm
Súly/Weight: 23,6 kg

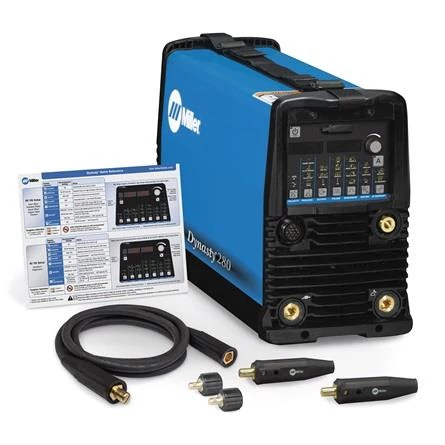

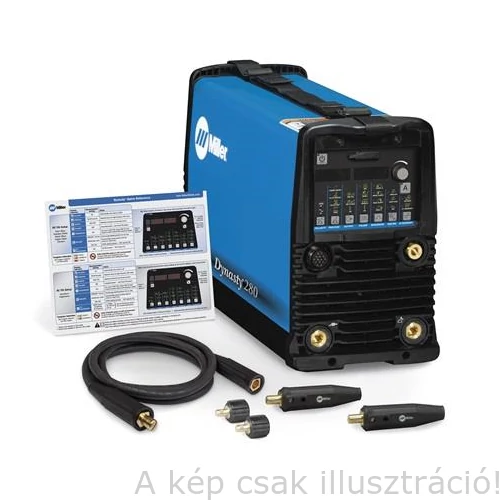

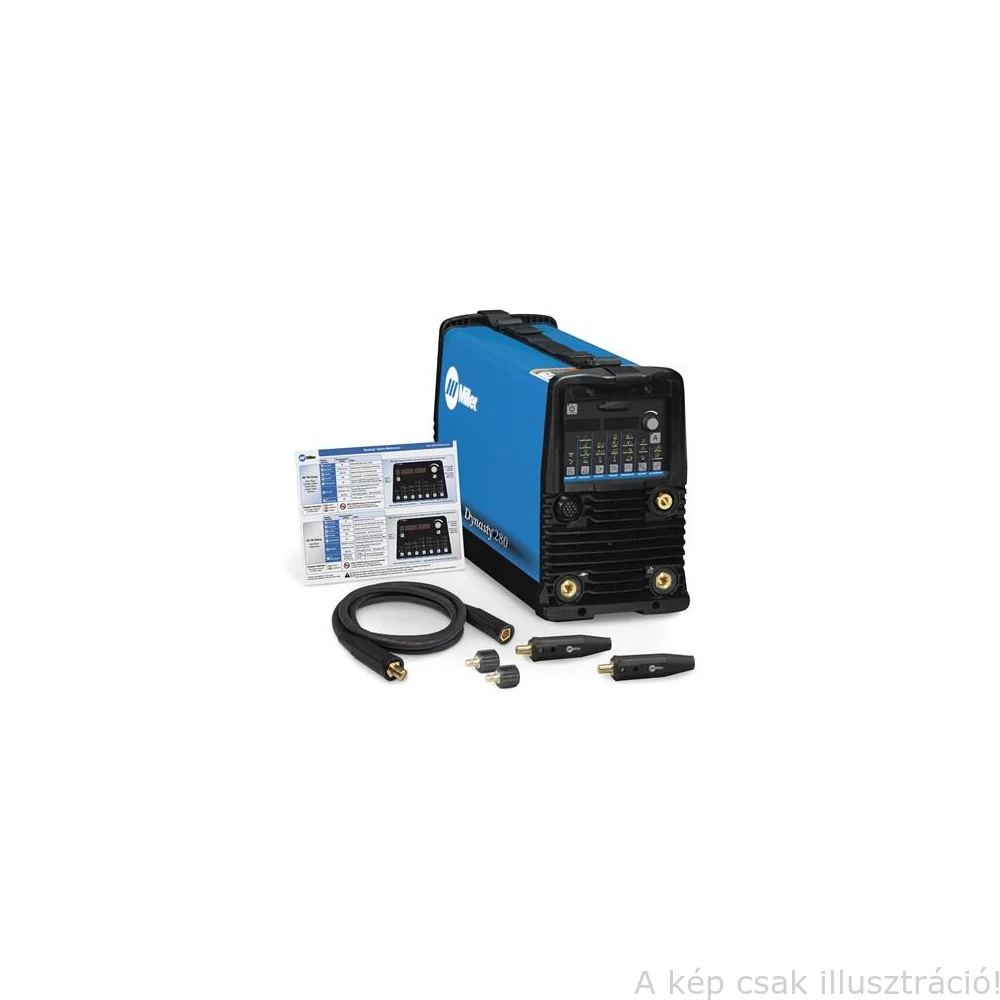

The Miller Dynasty 280 DX provides 280 amps AC/DC Tig & MMA welding output with a smooth stable arc. Advanced technologies, such as Pulse, reduce heat input, increase travel speeds and improve arc directional control. Auto-Line™ technology allows the machine to be connected to any mains voltage within the specified range. Weighing in at just 23kg, the Dynasty 280 DX provides a user friendly interface for intuitive operation as well as quick access to advanced features for expert welding operators. Designed for upgrade flexibility, a memory card port allows owners to download additional software when released, purchase product features from MillerWelds.com/tigsoftware and maximize their budgets by buying only the features they need. The Dynasty 280DX offers air cooled capabilities or can be used as a water cooled system via the Cooler Power Supply (CPS) an dedicated receptacle that powers the Coolmate 1.3 (available separately). The power switch on the machines activates the receptacle to help prevent torch failure.
Update and expand - Front panel memory card data port provides the ability to easily update software and expand product features.
Pro Set - eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
Sleep timer - conserves electricity. This programmable feature will power down the machine if it sits idle for a specified time.
Auto Line - Allows for any input voltage hookup (208 – 575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power
Wind Tunnel Technology™ - protects internal electrical components from airborne contaminates, extending the product life.
Fan-On-Demand™ - power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
