Leírás
The powerful STAHLWERK MIG 200 Double Pulse Pro shielded arc welder has a convenient pulse as well as double pulse function and works with up to 200 amps. The special double pulse function enables clean, precise welding of thin sheets. The double pulse function is particularly useful when processing aluminum, as the welding current is controlled in optimum synchronization with the wire feed and the oxide layer is broken up cleanly. The finely regulated control of the temperature produces an optimum penetration for the formation of a defect-free weld seam without pores. Another advantage of the robust 17.25 kg combination welder is that it can also be used for E-Hand/MMA welding.
Functions
Extensive double pulse function in MIG welding prevents burning through materials at low root heights and reduces deformation due to heat. Therefore, the MIG 200 double pulse Pro welder is especially suitable for welding thin plates and materials that may be heated only slightly.
The MIG 200 Double Pulse Pro operates on the basis of an advanced IGBT module with the latest inverter and control technology.
The MIG 200 double pulse Pro welding machine can process and weld non-, low- and high-alloy steels such as steel, stainless steel and aluminum alloys.
Thanks to the pulse function and advanced torch ergonomics, welding can be performed in all known joint shapes (butt welds and fillet welds) and positions (standing seam, drop seam, transverse seam).
Convenient selection of twin, spot and continuous spot operating modes as well as other special welding functions.
The welding unit is suitable for use with solid welding wire (steel, stainless steel; ø 0.8 - 1.0 mm and aluminum; ø 1.0 - 1.2 mm) and flux-cored wire. Thus, a wide variety of materials can be processed and welded.
Features & Advantages
Universally applicable 3 in 1 combination unit. MIG, MAG and MMA welding is possible up to 200 amps.
Built-in safety function to reduce the voltage (Volt Reduction Device - VRD). To increase safety during welding, the open circuit voltage U0 is reduced to 14 volts in MMA mode. The welder automatically detects the start of the welding process and then increases the open circuit voltage up to 62 volts. VRD is factory preset and cannot be turned off.
Built-in job memory allows preferences and parameters to be set to complete recurring jobs efficiently and quickly. Jobs and parameters can be restored. This enables convenient work without spending a lot of time on set-up times.
2T/4T (MIG) mode allows control of the operating mode and provides advanced control over current flow in Special 2 and Special 4 cycle modes.
Automatic wire feed for precise regulation of wire feed speed in direct relation to the set welding current.
Extensive setting options in terms of current and functions via intuitive graphic interface in the display.
Technical Data
Output current MIG / MIG pulse / MMA 50 - 200 A (MIG) / 30 - 170 A (MIG pulse) / 20 - 180 A (MMA)
Protection class IP21S
Mains voltage 1 x 230 V AC (+- 15%)
Mains frequency 50/60 Hz
Maximum mains current (I1max) 38 A
Maximum effective mains current (I1eff) 14,7 A
Open circuit voltage (U0) 62 V
Weight 17.25 kg
Dimensions L x W x H (mm) 590 x 240 x 430 mm
Mains connection CEE 7/7 Schuko plug
Standards IEC 60974-1; EN 60974-10 (Class A)
WEEE reg. no. DE 85577200

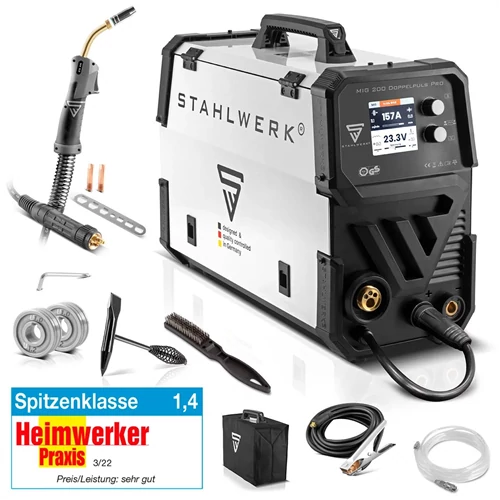

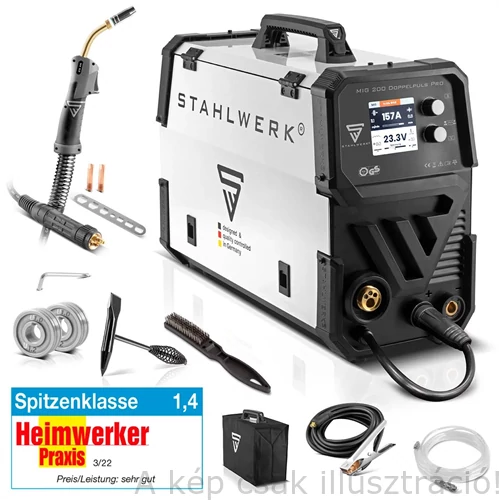

Scope of delivery:
1 x STAHLWERK MIG 200 double pulse Pro
1 x Professional MIG welding torch AK-25 / hose package 3 meters with Euro central connection.
1 x 3-piece MIG accessory set (already pre-assembled on the MIG/MAG torch)
1 x gas nozzle
1 x contact tip 0.8 mm
1 x gas nozzle holder
1 x Gas connection hose with quick coupling 5 meters
1 x earth cable 3 meters (25 mm² with 13 mm mandrel)
1 x contact tip M6 x 28 x 0.8 mm
1 x contact tip M6 x 28 x 1.0 mm
2 x wire guide rollers 0.8 & 1.0 mm with V-profile for steel (already installed in the device)
2 x wire guide roller 1.0 & 1.2 mm with U-profile for aluminum
1 x wire brush
1 x installation wrench
1 x protective cover
