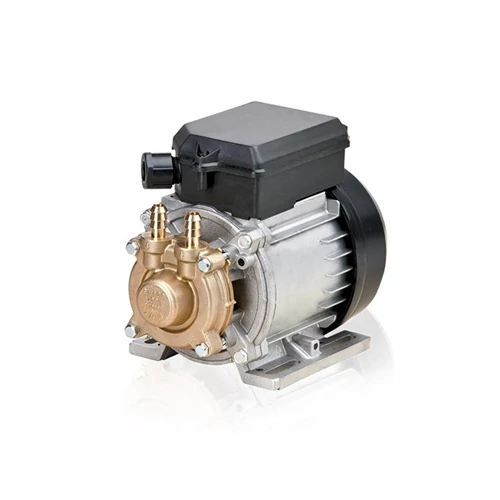

Miller alkatrész Invercool vízhűtő szivattyú (pump) 115V Simaco

P2 = Pump absorbed power - STD = Standard

Characteristics
For clear waters/oils and non-aggressive dilutions, without abrasive substances

Continuous duty S1

2 pole motor

Insulation class F

Protection IP42

Working tolerance: +/-10%

Water dilutions temperature (with anti-freeze additive) -20°C / +90°C, oil emulsions -20°C / +120°C

Limit ambient temperature: +40°C

Normal priming, manometer suction up to 5m

On request
Special voltages

60Hz version

Special fluids with temperature <180 °C

Other IP degrees

cRUus certified motors for selected tensions

Permanent Magnet Sensorless Motor

Materials

Body

CuZn / PPS

Impeller

CuZn / PEEK

Shaft

AISI420

Weight

KN37

3,8kg

KNP37

3,4kg

KN37 MD

3,9kg
