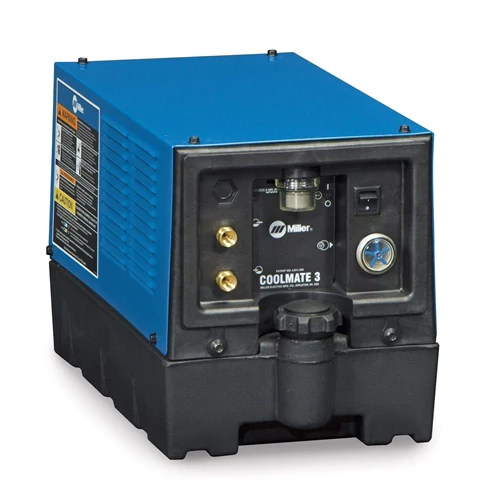

Miller COOLMATE 3,5 115V

Designed for water-cooled torches rated to 500 amps*, the Coolmate 3 is an economically priced 3-gallon cooler with all the ingenious design features you’d expect from Miller.

Running on 115 VAC, the Coolmate 3’s closed-loop design with radiator reduces coolant temperature and protects against overheating. The coolant’s reservoir tank is molded polyethylene, as are the fan shroud and easy fill spout, so corrosion is never a concern.

Equipped with standard inlet/outlet torch fittings, the Coolmate 3 is compatible with all TIG and MIG torches with standard 5/8-18 left-hand fittings. The included 10-foot (3 m) power cords with plugs are longer than most power cords in the industry — for extra length when you need it.

*May vary with torch design and cable length.

OVERVIEW
Midsize, horizontal design for easy stacking and mounting
Front panel controls include: power switch, paddle wheel coolant flow indicator, filter and coolant filling spout
Polyethylene-molded coolant tank, fan shroud and filler spout
Factory-set pressure relief valve (55 PSI) maintains consistent pressure during use
Thermally protected 1/4 HP motor
Efficient fin and tube heat exchanger
Brass-body, positive displacement rotary vane pump for consistent coolant flow and long pump-life
Compatible with Miller coolants
Weight: 40 lb (18 kg) dry
