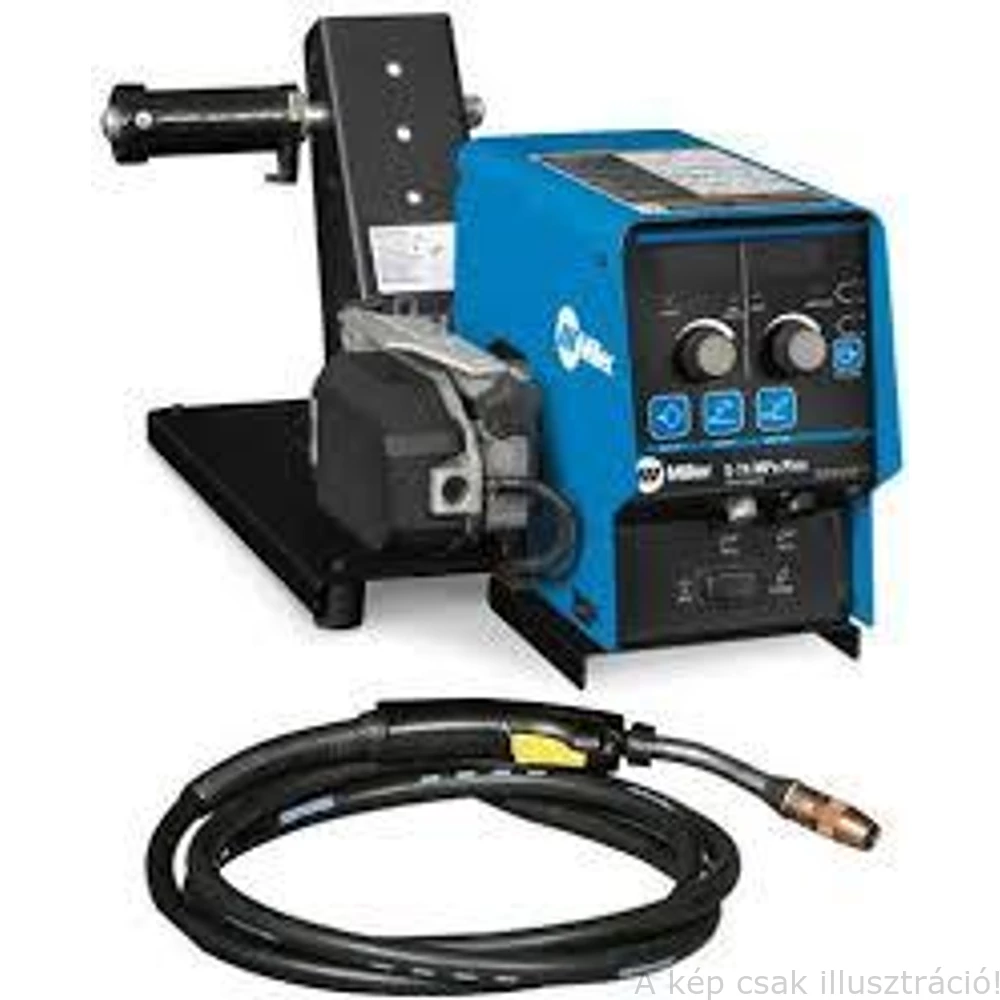

Miller huzalelőtoló/wie feeder S74 MPa Plus, impulzus, duplaimpulzus (XMT 350 Mpa stb.) 300577

Bemeneti teljesítmény/Input Power: 24 VAC, 10 A, 50/60 Hz
Névleges kimeneti teljesítmény/Rated Output: –
Orsóméret kapacitás/Max Spool Size Capacity: 415 mm, 27 kg
Huzal előtoló sebesség/Wire Feed Speed: 1.3 – 19.8 m/min
Méretek/Dimensions: 356 x 318 x 711 mm
Súly/Weight: 26 kg

Adatlap: Miller S-74MPa Wire feeder

Applications
Heavy Manufacturing
Light Manufacturing
Metal Fabrication
Construction

Posifeed™ Wire Drive Assembly Features
(Synergic Pulsed MIG when connected to the XMT350 MPa)
24 VDC high-torque, permanent-magnet motor
Quick-change drive rolls
Drive roll change without losing spring preload setting
Four sealed ball bearing all-gear-driven drive-roll carriers
Uses Miller standard 41 mm diameter drive rolls
Easy loading and threading of welding wire without having to
release the drive-roll pressure arm
Covered drive rolls-easy access, heavy-duty, molded composite
cover over drive assembly
Floating positive drive systems provide trouble-free feeding on a
variety of wires
