Miller,WK AVI pisztoly víz hűtéses/TIG-torch CS310A 8m, DINSE 35-50, DC-310A@100%, WATERQUICK,GAS 5/8'',14 PIN CS310AS8AAFD
Leírás

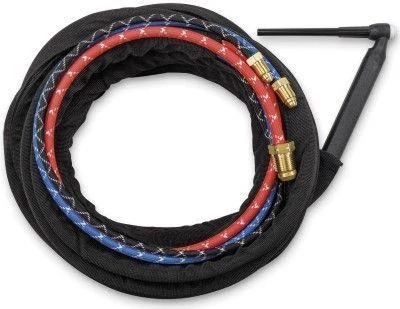

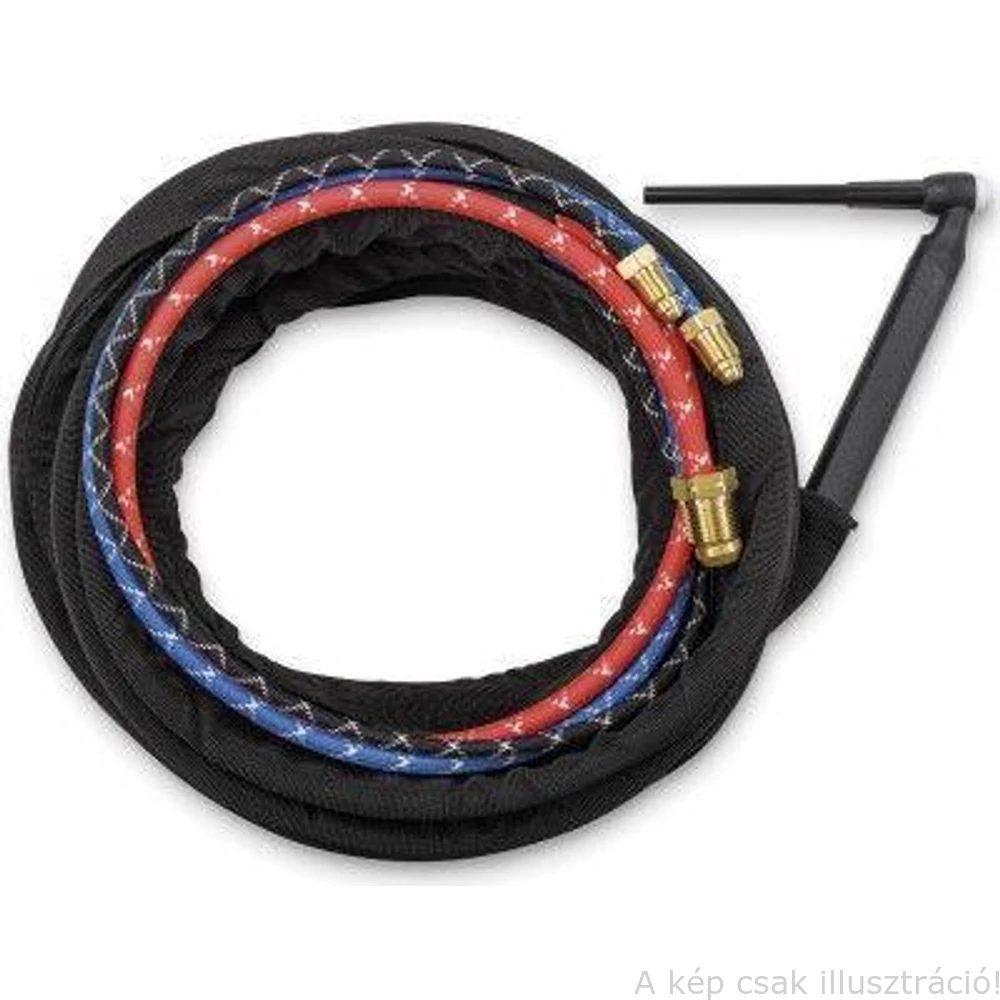

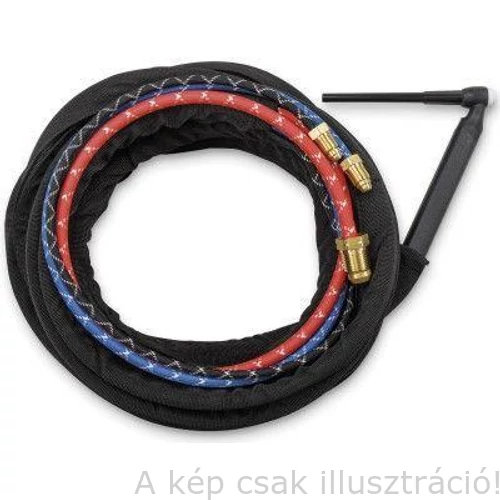

Weldcraft™ W-310, Crafter Series Torch Package by Miller®
The CS310 torch defines a new standard in amperage output, with a compact torch size for increased reliability on high amp TIG welding applications. The innovative "D" shaped handle design offers a self-indexing flat top that allows the operator to orient the torch by feel, improving overall torch control. The reinforced rubber cable assembly offers greater flexibility, especially in cold weather. Torch package comes complete with high-performance TIG torch, super flexible power water and gas hoses, premium cable cover and 3/32" (2.4mm) front end parts installed.
CS310 Specifications:
310 Amp DC, 310 Amp AC (100% duty cycle)
Water-cooled body 70º head angle
Electrode capacity 020" (0.5mm) -to- 1/8" (3.2mm)
Torch body weight 3 oz. (85g)
Torch length 7" (177.8mm)
Handle diameter 7/8" (22.2mm) Self-indexing, flat-top
Water flow 1qt./min. (0.946 L/min.)
Maximum pressure 50 psi (3.448 BAR)
Ismertető
Leírás/ Description
https://www.millerwelds.com/-/media/f74c8f5cc41f43bb8f8de85133065f5e.pdf
CS310 Specifications:
- 310 Amp DC, 310 Amp AC (100% duty cycle)
- Water-cooled body 70º head angle
- Electrode capacity 020" (0.5mm) -to- 1/8" (3.2mm)
- Torch body weight 3 oz. (85g)
- Torch length 7" (177.8mm)
- Handle diameter 7/8" (22.2mm) Self-indexing, flat-top
- Water flow 1qt./min. (0.946 L/min.)
- Maximum pressure 50 psi (3.448 BAR)
