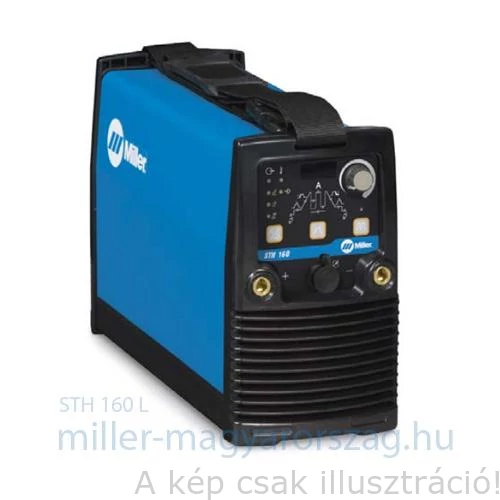

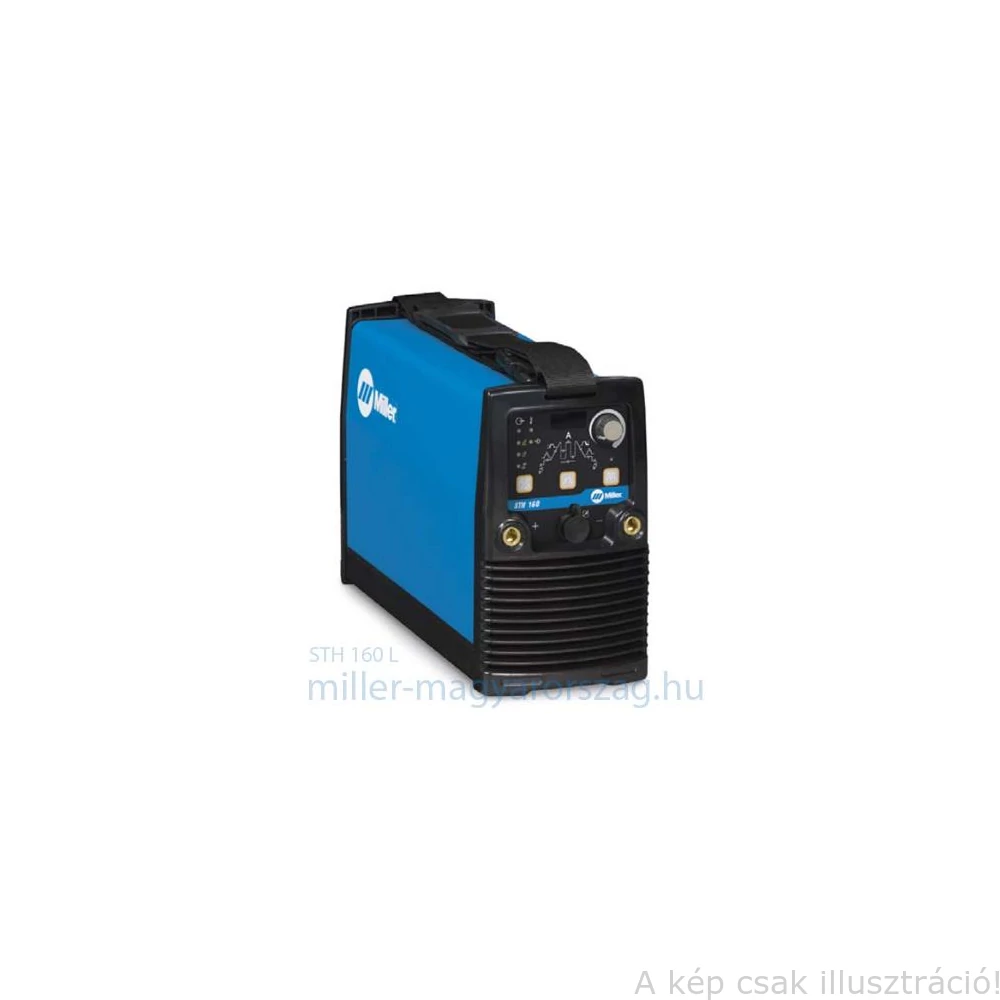

Miller STH 160L HF AVI DC, inv.heg.gép tartozékokkal (TIG,impulz,230V,5–160 A, 145A@30%Bi.,7 kg,VRD) WP-17/4m AVI piszt.+testkábel 029083113

Bemeneti teljesítmény/Input Power: 230 VAC (1-Phase)
Névleges kimeneti teljesítmény/Rated Output: 145 A, 30% Duty Cycle
Kimeneti tartomány/Output Range: 5 – 160 A
Maximális üresjárati feszültség/Max Open Circuit Voltage: 85 VDC
Méretek/Dimensions: 245 x 145 x 380 mm
Súly/Weight: 6,0 kg


Inverter-based, DC power source has
a simple-to-use operator interface
providing only the necessary
controls in a compact machine.
Best in class Stick and TIG arc
characteristics for those demanding
jobs.
Portable in the shop or at the job
site - at 6,0 kg the shoulder strap
allows the end user to easily move
from location to location.
Built-in pulsing capabilities allow
the operator to select from four fixed
pulse frequencies to satisfy the
application.
HF Start for non-contact arc starting
that eliminates tungsten or material
contamination.
Dual Fan technology an optimised
power source cooling system which
enables the machine to operate at a
lower temperature, thus increasing
it’s performance and life cycle.

Digital meter with presetting,
shows preset current before
welding and actual value during
welding.
Remote control connector to
connect a remote control.
Lift TIG function, support TIG
welding with Lift TIG start without
the risk of tungsten contamination.
Adjustable Hot Start™ for Stick
arc starts. Adjust the optimal start
current for the application.
The current automatically increases
the output amperage at the start of
a weld.
Adjustable Arc force™ prevents
sticking. Adjust the optimal arc
force value. Adjustable arc force
supports positional welding by
increasing the output amperage.
VRD function is a simple design
that reduces the open-circuit
voltage to 12-16 volts when the
welding power source is not in use.

Applications
Process Pipe
Maintenance Repair
Restaurant/Kitchen Repair
Experimental Aircraft
Dairy Industry
Food/Beverage Industry
Shipboard Installation/Repair
